Use the on-screen keyboard of your MX922 to enter numbers, letters, and symbols
URL Name
ART140619
Description
Learn how to use the on-screen keyboard of your PIXMA MX922 to enter numbers, letters, and symbols.
Solution
Switch the input mode
The printer allows you to enter characters by selecting them from an on-screen list when registering information, such as unit name, a recipient's name for coded speed dial, and so on.
There are three input modes that you cycle through by pressing the center Function button (Aa1):
lowercase mode
uppercase mode

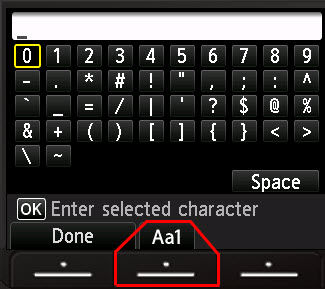

numeric mode. (This mode includes symbols such as # + = & - _ @ etc. in addition to numbers)
Enter numbers, letters, and symbols

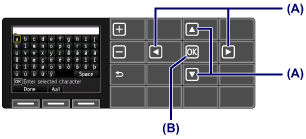

Refer to this diagram:
Press the , , , and buttons (A) to select the character, then press the OK button (B).
To enter a space, select Space.
To delete the last character you entered, press the right function button to select Del. character.
After all characters are entered, press the left function button to select Done.
Edit text entry
To edit entered characters, press the
or
button to select the entry column (C).
Press the
or
button to move the cursor under the position you want to edit.
To insert a space select Space, then press OK.
To insert a character select the character you want to insert, then press OK.
To delete a character press the right function button to select Del. character.
