Printing the Network Information (LAN Settings) - MX522

« Go Back

Information


TitlePrinting the Network Information (LAN Settings) - MX522
URL NameART143933
Description
Solution

Make sure that the machine is turned on. Load a sheet of A4 or Letter-sized plain paper.

1.  Press the MENU button.

2.  Select   Setup

3.  Select   Device settings, then press the OK button.

4.  Use the UPDOWN button to select LAN settings, then press the OK button.

5.  Use the UPDOWN button to select Confirm LAN settings, then press the OK button.

6.  Use the UPDOWN button to select Print LAN details, then press the OK button to confirm the selection.


7.  Use the UPDOWN button to select Yes, then press the OK button to start printing.

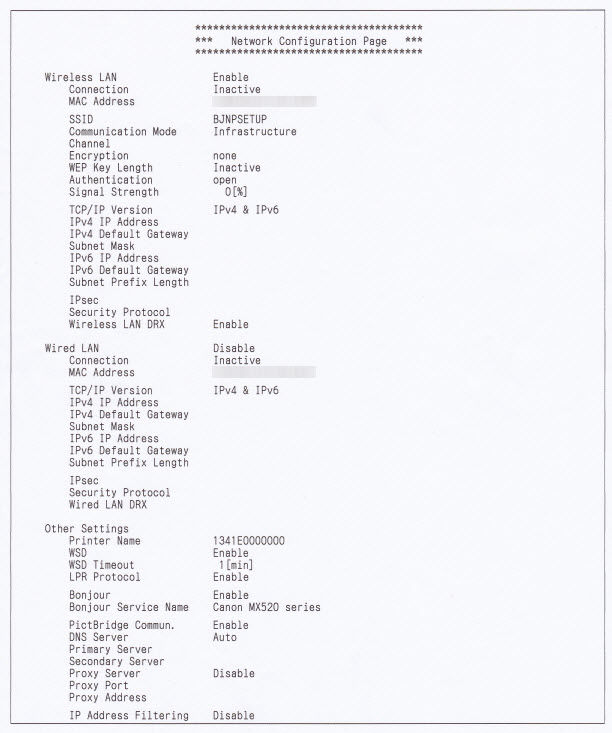

The machine starts printing the network setting information.  The following is an example of a LAN details page:

/library/attachments/embedded/18715_image_1.jpg
