How to start Cableless Setup on the Printer - MX490 / MX492

This article shows how to initiate the Cableless setup function of the PIXMA MX490 / MX492. Links are provided to other articles which will provide instructions for setting up a computer or mobile device to work with the printer while it is in the Cableless setup mode.

1. Press the Setup  button on the printer.

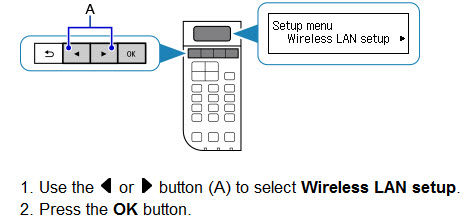

2. Select Wireless LAN setup

:

3. Select Other setup. Press the OK button.

4. Select Cableless setup. Press the OK button.

After the printer has been placed into Cableless setup mode, you will need to use a Windows PC, Mac, iOS, or Android device to connect the printer to the network.
