This article shows how to load envelopes into the PIXMA iP110.


Solution

You can load Envelope DL and Envelope Com 10.

The address is automatically rotated and printed according to the envelope's direction by specifying with the printer driver properly.


 Important

  • Printing of envelopes from a digital camera is not supported.

  • Do not use the following envelopes. They could jam in the printer or cause the printer to malfunction.

    • Envelopes with an embossed or treated surface
    • Envelopes with a double flap
    • Envelopes whose gummed flaps are already moistened and adhesive


  1. Prepare envelopes.

    • Press down on all four corners and edges of the envelopes to flatten them.





    • If the envelopes are curled, hold the opposite corners and gently twist them in the opposite direction.




    • If the corner of the envelope flap is folded, flatten it.


    • Use a pen to press the leading edge in the inserting direction flat and sharpen the crease.





      The figures above show a side view of the leading edge of the envelope.


     Important

    • The envelopes may jam in the printer if they are not flat or the edges are not aligned. Make sure that no curl or puff exceeds 0.1 inch (3 mm).

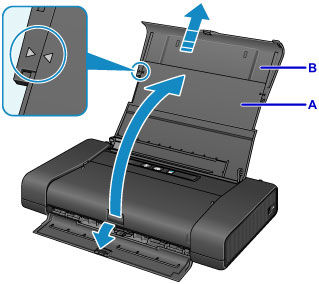

  2. Open the rear tray cover (A).

    The paper output slot cover will open automatically.


  3. Pull out the paper support (B) until the arrow ( ) mark is aligned with the arrow ( ) mark.

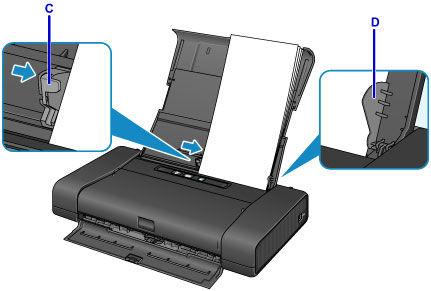

  4. Slide the paper guide (C) to the left, and load the envelopes against the far right (D) of the rear tray WITH THE PRINT SIDE FACING YOU.

    The folded flap of the envelope will be faced up on the left side.

    Up to 10 envelopes can be loaded at once.


  5. Slide the paper guide (C) to align it with the envelopes.

    Do not slide the paper guide too hard against the envelopes. The envelopes may not be fed properly.







    E: Rear side

    F: Address side


     Note

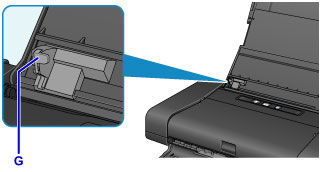

    • Keep the envelope stack height below the tab (G) of the paper guide.

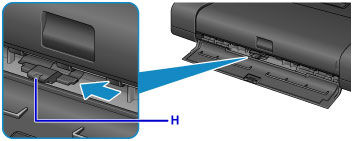

  6. Set the paper thickness lever (H) to the left.





     Note

    • Reset the paper thickness lever to the right when you finish printing.

 Note

  • When printing, select the size and type of the loaded envelopes on the print settings screen of the printer driver.
