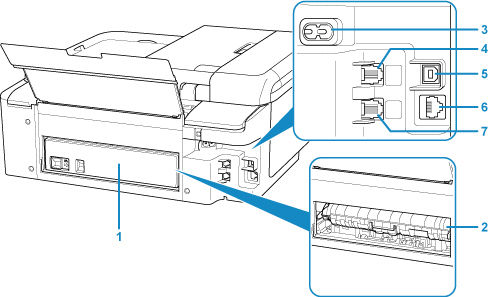

Rear View
-
(1) rear cover
-
Detach when removing jammed paper.
-
(2) transport unit cover
-
Open when removing jammed paper.
-
(3) power cord connector
-
Plug in the supplied power cord.
-
(4) telephone line jack
-
Connect the telephone line.
-
(5) USB port
-
Plug in the USB cable to connect the printer with a computer.
-
(6) wired LAN connector
-
Plug in the LAN cable to connect the printer to a LAN.
-
(7) external device jack
-
Connect an external device such as telephone or answering device.
Do not touch the metal casing.
Do not plug in or unplug the USB cable while the printer is printing or scanning originals with the computer.
