Loading Originals on the Platen Glass - TR8520

This article explains how to load original items on the platen glass on your PIXMA TR8520.



To load original items on the platen glass for scanning or copying, follow the steps below.


1. Open the document cover.


2. Load the original WITH THE SIDE TO SCAN FACING DOWN on the platen glass.





    Important

   • Be sure to observe the following when loading the original on the platen glass.


     • Do not place any objects weighing 4.4 lb (2.0 kg) or more on the platen glass.

     • Do not put any pressure of 4.4 lb (2.0 kg) or more on the platen glass, such as pressing down the original.


     Failure to observe the above may cause the scanner to malfunction or the platen glass to break.

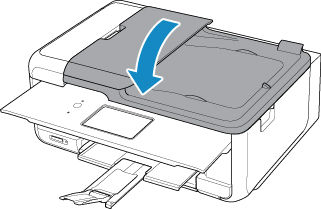

3. Close the document cover gently.





 Important

• After loading the original on the platen glass, be sure to close the document cover before starting to copy or scan.



---
