Use the Easy Wireless Connect method to connect your PIXMA TS9120 to a wireless network using a Windows PC.

Solution

The instructions below show how to use the Easy Wireless Connect method to print and scan wirelessly from the PIXMA TS9120 to a Windows computer.


NOTEStart Easy Wireless Connect on the printer and then complete the setup on the computer.

NOTEIf you want to setup the PIXMA TS9120 on a Mac read this article, Learn how to set up the printer with Easy Wireless Connect on a Mac®.



The setup process consists of 2 parts:

  1. Starting Easy Wireless Connect on the printer, and
  2. Downloading and running the setup file to install the drivers and software.




1. Start Easy Wireless Connect on the printer.

  1. Make sure that the printer is turned on.
    If the power is on, the POWER lamp (A) will be lit.

    figure: POWER lamp lights up

    Notes on Wireless Connection
    (Appears in a new window)

    If the printer is performing any process, wait for the process to finish, before starting setup.

  2. If HOME is displayed on the left side of the screen, tap HOME.
    If an error screen is displayed, tap OK, then tap HOME.

    HOME screen

  3. Tap Network status (B).

    HOME screen: Select Network status

  4. Tap LAN settings.

    Basic network information screen: Select LAN settings

  5. Tap Wireless LAN.

    LAN settings screen: Select Wireless LAN

  6. Tap Wireless LAN setup.

    Wireless LAN screen: Select Wireless LAN setup

  7. Tap Easy wireless connect.

    Other setup screen: Select Easy wireless connect

  8. Tap Yes.

    Easy wireless connect screen: Settings will be made on a computer or smartphone, etc.

  9. When the printer preparation is complete, the screen below appears.
    Return to the setup application screen and proceed with the setup.

    Easy wireless connect screen: Follow the instructions on the computer or smartphone, etc. to perform the operation.



2. Download and run the setup file.

Click here to Get the Setup File, of use the Setup CD-ROM.
Read the information carefully taking note how to run the setup file if setup does not start automatically. Then click the Download button.

  1. Select Start Setup.

      Start Setup screen, Start Setup button outlined in red

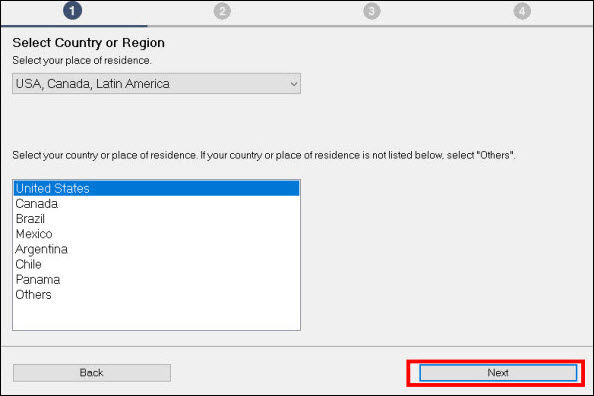

  • Select appropriate region and click Next.

      Select Country or Region. Next button outlined in red

  • Select Yes on the License Agreement.

    License Agreement screen, Yes button outlined in red

  • Select Agree or Do Not Agree to the Survey.

    Extended Survey Program screen, Agree button outlined in red

  • Select Next.

    Firewall Settings screen. Deactivate the block is selected, Next is outlined in red

  • Select Yes on the Connection Method.

    Check the Connection Method screen, Yes button outlined in red

  • Setup continues.  If the Select wireless router screen (below) appears, select the wireless router to connect to the printer, enter the Network Key (password) and click Next.
    NOTEThe router being used and its network settings determines whether or not this screen appears

    Select wireless router screen. My Router, Network Key entry field, and Next button are outlined in red

  • Information appears.

    Setting Up screen

  • Network Connection completed.  Click Next.

    Connection completed screen, Next button outlined in red

  • The Test Print screen appears next.  This can be performed or not.  If you choose to perform the print,  follow the on-screen instructions.

  • Setup complete.  Click Next.

    Setup Complete screen, Next button outlined in red

  • Select any optional application software desired (Defaults, Clear All or select by checkbox).  Click Next.

    Software Installation List screen, Next button outlined in red

  • Click Next.

    You Can Print from a Smartphone or Tablet screen, Next button outlined in red

  • Click Next or Skip.

    User Registration screen, Skip and Next buttons outlined in red

  • Click Exit.





    If your product issue was not resolved after following the steps above, or if you require additional help, please create or log in to your Canon Account to see your technical support options.
