This article shows how to start a wireless connection of your PIXMA TS5020 printer to a wireless LAN using the WPS PIN code method.
Solution
Some wireless routers will allow you to connect devices via a WPS PIN code. Follow the steps below to begin a wireless connection setup using the WPS PIN code method for the PIXMA TS5020.

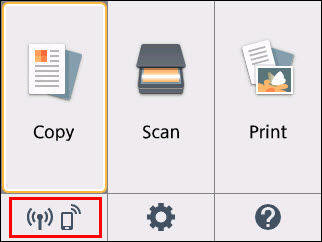

On the HOME screen, use the arrows to select the network symbol at the lower left corner of the screen and press the OK button.

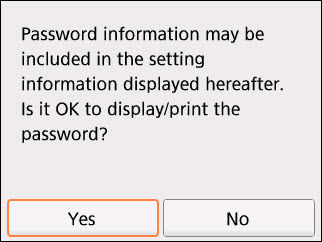

At the prompt, select Yes and press the OK button.

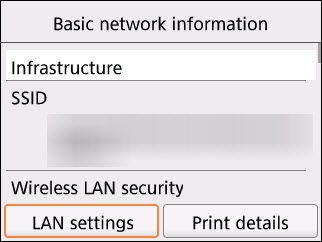

LAN settings will be selected by default. Press the OK button.

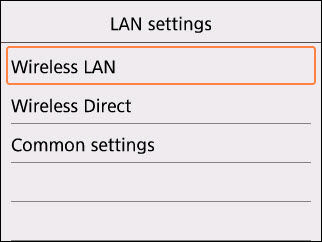

On the LAN settings screen, select Wireless LAN and press the OK button.

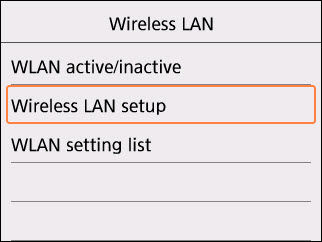

Select Wireless LAN setup and press the OK button.

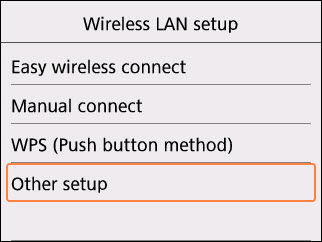

Select Other setup and press the OK button..

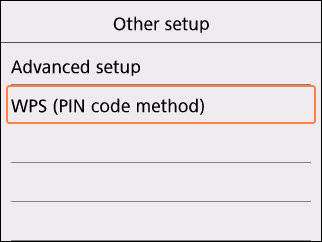

Select WPS (PIN code method) and press the OK button.
A PIN code will appear on the screen.
The PIN code must be entered into your router. Please refer to your router's documentation for information on how to enter a PIN code from a device.

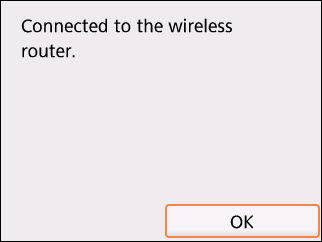

After the PIN code has been entered into the router, the printer will attempt to connect to the network.
