Information


TitleTS8320 Manual Setup
URL NameART175342
Description
Setup the Wireless Connection by entering network information using the operation panel
Solution

Manual Connection

  1. Tap  Network (A).

    HOME screen: Select Network

  2. Tap Wi-Fi.

    LAN settings screen: Select Wi-Fi

  3. Tap Settings.

    Wi-Fi setting list screen: Select Settings

  4. Tap Wi-Fi setup.

    Wi-Fi screen: Select Wi-Fi setup

  5. Tap Manual connect.

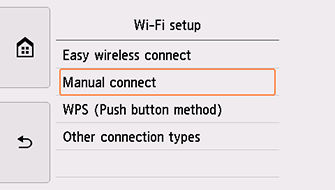

    Wi-Fi setup screen: Select Manual connect

  6. Tap your wireless router.

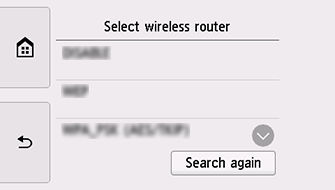

    Select wireless router screen

    If a different screen appears or no wireless router is found, see "Troubleshooting."

  7. One of the screens below will appear.

    If "Connected to the wireless router." appears, the network does not require a password. Continue from step 8.

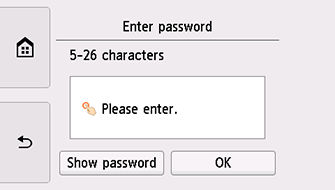

    Enter password screen

    Enter password screen

    If a different screen appears, see "Troubleshooting."

  8. Tap the input area.

  9. Enter the password. Text entry is case-sensitive.

    For how to enter characters and how to change the character type, see "Text Entry" (appears in a new window).

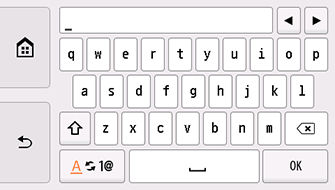

    Enter password screen

    If you don't know the password for your wireless router, see the wireless router manual or contact its manufacturer.

  10. Tap OK.

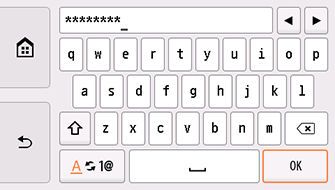

    Enter password screen

  11. Tap OK.

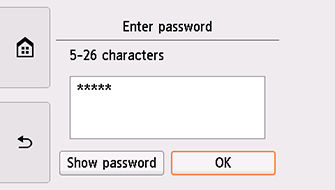

    Password confirmation screen

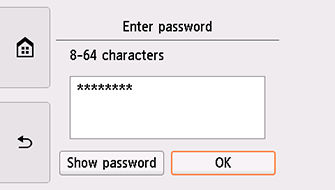

    Password confirmation screen

  12. When the screen on the below appears, tap OK.

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

  13. Tap  HOME on the left side of the screen.

    HOME screen

    The network connection setup is now complete.

    When connection is complete,  Network appears at the bottom left of the screen.


    Return to the software and proceed with the installation.

    Windows

    Click  Setup icon in the taskbar, follow the on-screen instructions to proceed with setup.

    taskbar

    macOS

    Click  Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

    Dock
