TitleTS8320 WPS Setup
URL NameART175345
Description
Setup the Wireless Connection using Wifi Protected Setup (WPS) if the feature is available on the wireless router
Solution

WPS Connection

  1. Tap  Network (A).

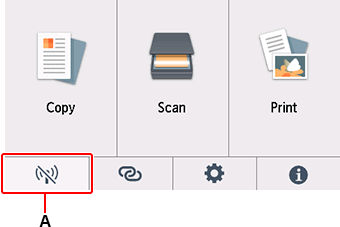

    HOME screen: Select Network

  2. Tap Wi-Fi.

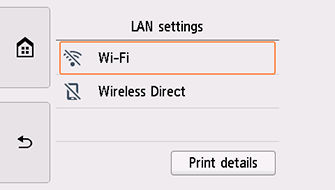

    LAN settings screen: Select Wi-Fi

  3. Tap Settings.

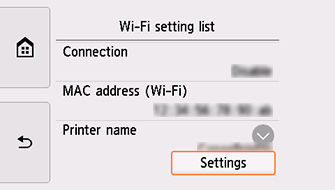

    Wi-Fi setting list screen: Select Settings

  4. Tap Wi-Fi setup.

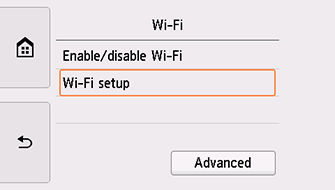

    Wi-Fi screen: Select Wi-Fi setup

  5. Tap WPS (Push button method).

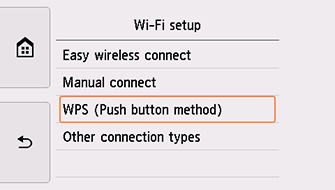

    Wi-Fi setup screen: Select WPS (Push button method)

  6. Tap OK.

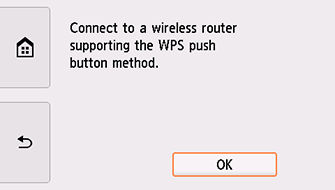

    WPS (Push button method) screen: Select OK

  7. Press and hold the WPS button on the wireless router.

    Note

    • For more on pressing the WPS button, see the wireless router manual.

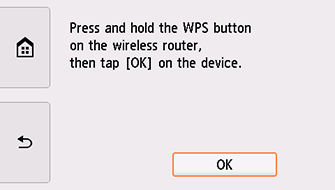

  8. Tap OK on the printer within 2 minutes.

    WPS (Push button method) screen: Select OK

    If a different screen appears, see "Troubleshooting."

  9. When the screen on the below appears, tap OK.

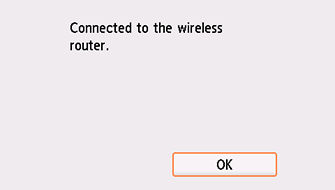

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

  10. Tap  HOME on the left side of the screen.

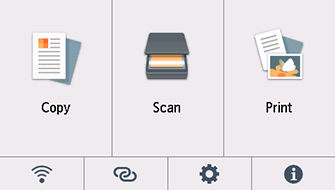

    HOME screen

  11. The network connection setup is now complete.

    When connection is complete,  Network appears at the bottom left of the screen.


    Return to the software and proceed with the installation.

    Windows

    Click  Setup icon in the taskbar, follow the on-screen instructions to proceed with setup.

    taskbar

    macOS

    Click  Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

    Dock
