Assign a Static IP Address with Canon PRINT (iOS / iPadOS / Android / ChromeOS)

Printable View
« Go Back

Information


TitleAssign a Static IP Address with Canon PRINT (iOS / iPadOS / Android / ChromeOS)
URL NameART178966
Description

You can use Canon PRINT to set a static IP address to your printer.

Please note that not all models may support this option.

Solution
You can use Canon PRINT to set a static IP address to your printer. Please note that not all models may support this option.

You can use Canon PRINT to assign a static IP address to your printer. Follow the steps below if you want to assign a static IP address to the printer.

 Depending on your model, you may see different options than the ones shown in these screenshots.

  1. On the main screen of the Canon PRINT, select the printer.

    Tap the printer (outlined in red)

  2. Select Printer Information.

    Tap Printer Information (outlined in red)

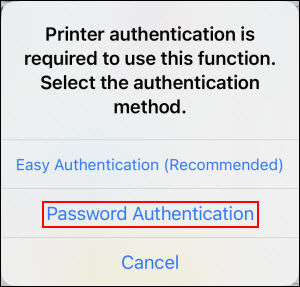

     If you see a prompt similar to the following, select Password Authentication.

    Tap Password Authentication (outlined in red)

  3. The printer's Remote UI will appear in a web browser. Select Log on.

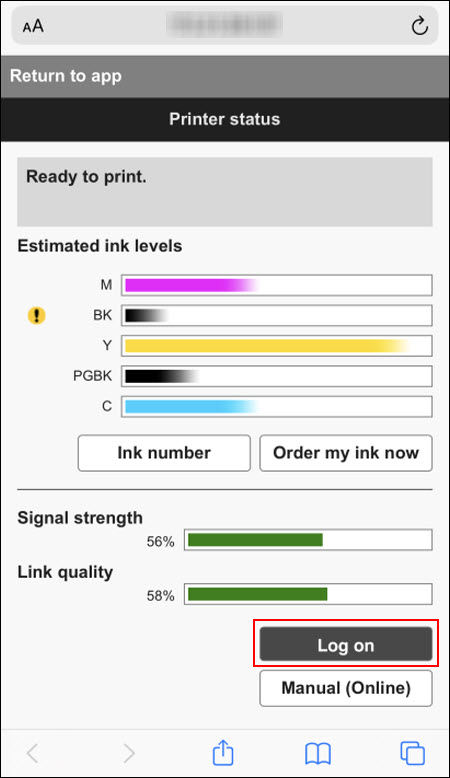

    Tap Log on (outlined in red)

     If a warning message similar to the one shown below appears, select Show Details or the appropriate option.

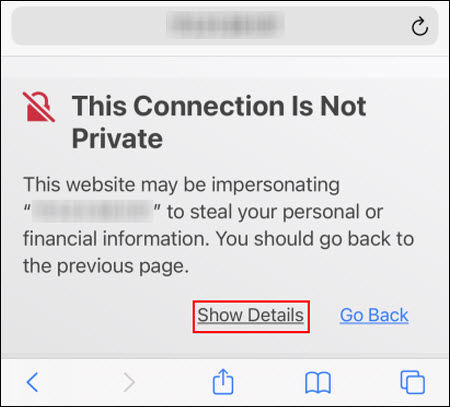

    Tap Show Details (outlined in red). Your web browser may offer a different option to tap

    Select visit this website (the web browser that you use may offer a different option, select it to continue).

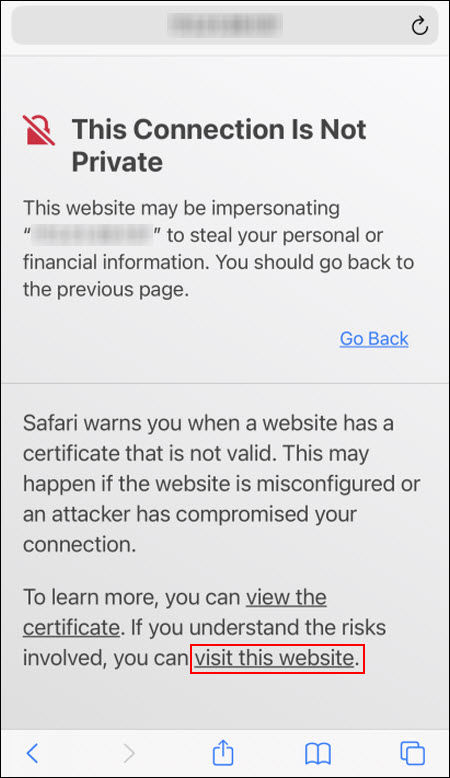

    Tap visit this website (outlined in red)

    You may need to select another option to confirm that you want to proceed. If you are prompted again to continue, select the appropriate affirmative option.

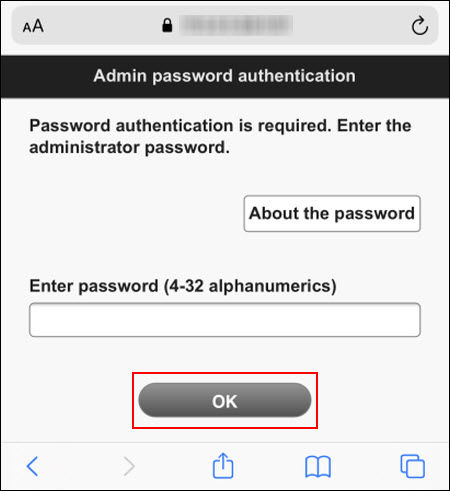

  4. Enter the password for your printer, then select OK.

    Enter the password for your printer, then tap OK (outlined in red)

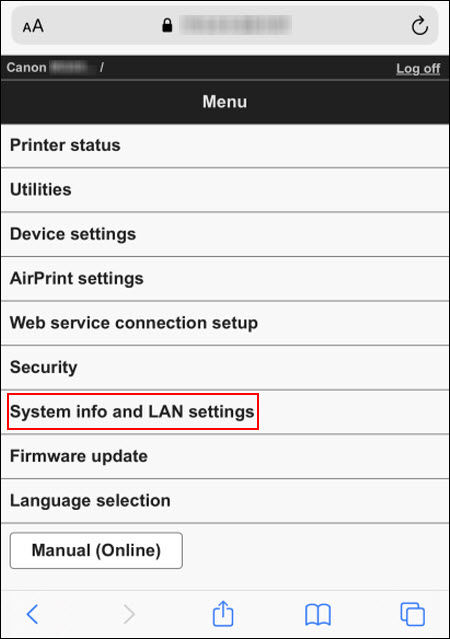

  5. Select System info and LAN settings.

    Tap System info and LAN settings (outlined in red)

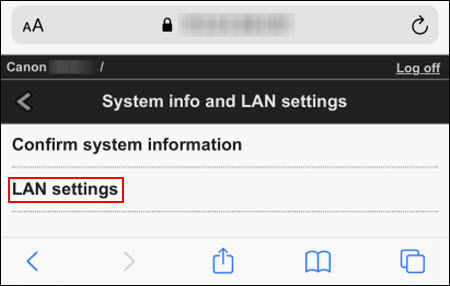

  6. Select LAN settings.

    Tap LAN settings (outlined in red)

  7. Select Other settings.

    Tap Other settings (outlined in red)

     For some models, select Advanced setup.

    Tap Advanced setup (outlined in red)

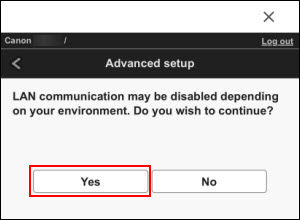

  8. Select Yes. The displayed message may vary depending on the printer model you are using.

    Tap Yes (outlined in red)

    Tap Yes (outlined in red)

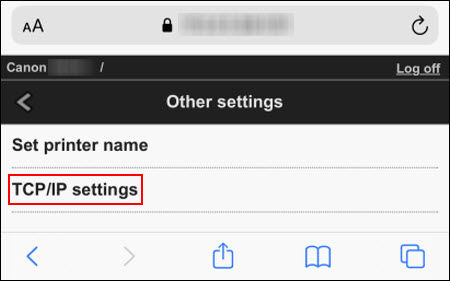

  9. Select TCP/IP settings.

    Tap TCP/IP settings (outlined in red)

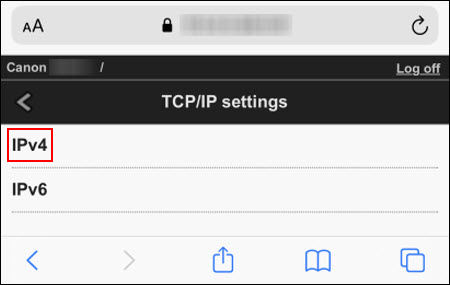

  10. Select IPv4.

    Tap IPv4 (outlined in red)

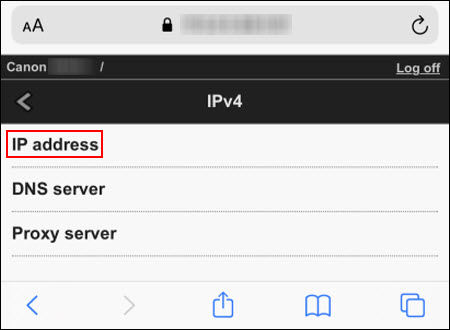

  11. Select IP address.

    Tap IP address (outlined in red)

  12. Select Manual setup, then select OK.

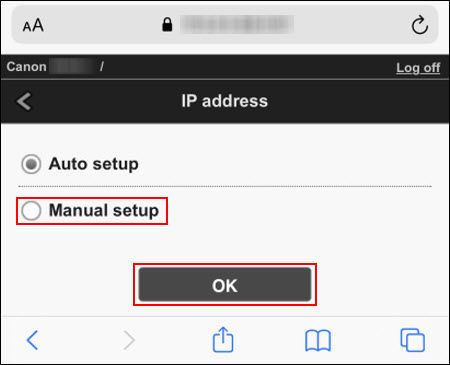

    Tap Manual setup (outlined in red), then tap OK (outlined in red)

  13. Enter the IP address, Subnet mask, and Default gateway. Select OK when finished.

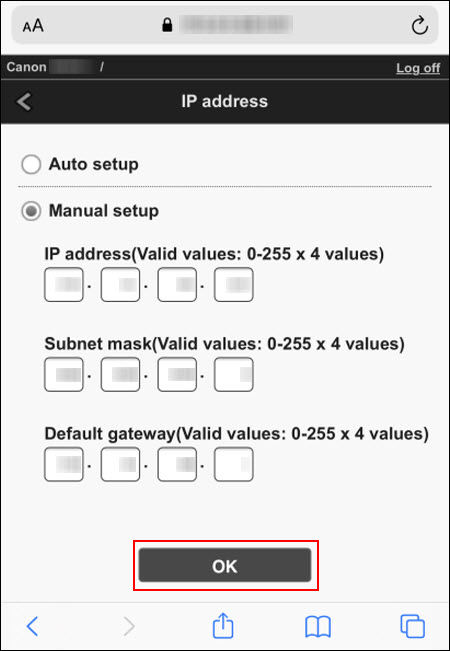

    Enter the IP address, Subnet mask, and Default gateway. Tap OK (outlined in red) when finished

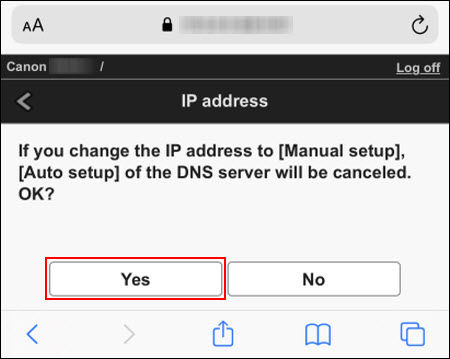

  14. If this prompt appears, select OK.

    If this prompt appears, tap OK (outlined in red)

    The IP address will be set to the one you specified.

     If you change the IP address to something different from what is shown on the screen displayed in step 13, your mobile device will indicate that it can't communicate with the printer. You'll need to either access the Remote UI again through Canon PRINT as shown in steps 1-4, or you'll need to enter the new IP address you specified into the web browser you're using. You may need to re-enter the printer's password.

     If your printer has a static IP address and you want it to automatically obtain an IP address from your wireless router, select Auto setup in step 12. However, if you do this, the printer will most likely obtain a new IP address from the router. You'll need to access the Remote UI again through Canon PRINT as shown in steps 1-4.
