You can load A4, B5, A5, or Letter-sized plain paper in the cassette.
Align the edges of paper neatly before loading. Loading paper without aligning the edges may cause paper jams.
If paper is curled, hold the curled corners and gently bend them in the opposite direction until the paper becomes completely flat.
-
Align the edges of paper. If paper is curled, flatten it.
Align the edges of paper neatly before loading. Loading paper without aligning the edges may cause paper jams.
If paper is curled, hold the curled corners and gently bend them in the opposite direction until the paper becomes completely flat.
-

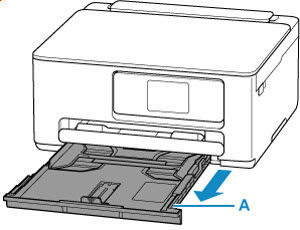

Pull the cassette (A) out of the printer.
-

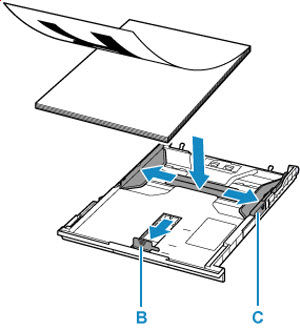

Slide the paper guides (B) in front and (C) on the right to open guides.
-
Load the paper stack in portrait orientation WITH THE PRINT SIDE FACING DOWN, and place it in the center of the cassette.
Always load paper in portrait orientation (D). Loading paper in landscape orientation (E) can cause paper jams.

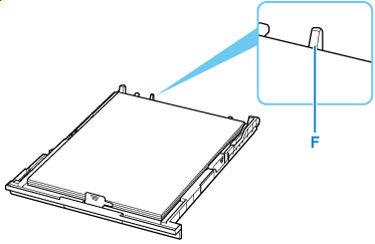

Align the paper stack with the edge of the cassette as shown in the figure below.
If the paper stack is in contact with the protrusion (F), the paper may not be fed properly.
-

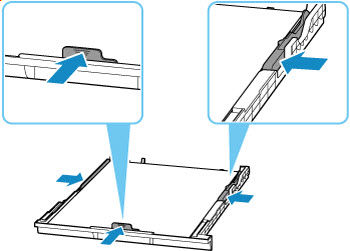

Slide the front paper guide to align it with the paper stack.
Align the paper guide with where it clicks into place.
-
Slide the right paper guide to align it with the paper stack.
Do not slide the paper guide too hard against the paper. The paper may not be fed properly.

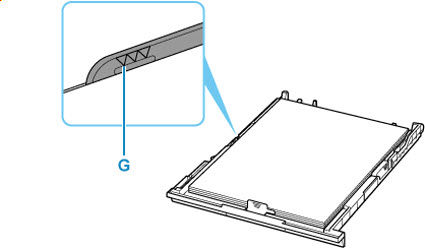

Do not load sheets of paper higher than the load limit mark (G).
-

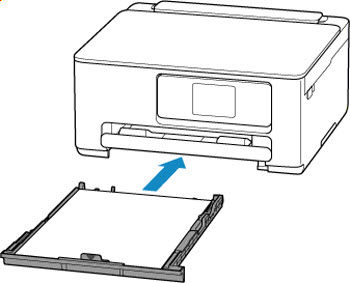

Insert the cassette into the printer.
Push the cassette into the printer until it stops.
-
If page size on touch screen matches size of paper loaded in cassette, select Yes.
If not, select Change to change the setting in accordance with the size of the loaded paper.
-

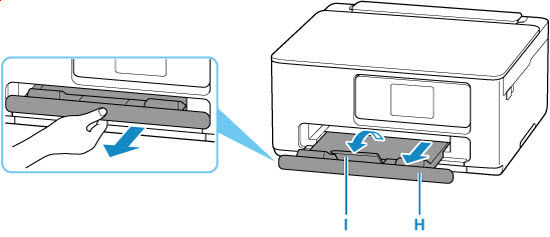

Pull out the paper output tray (I) and open the paper output support (J).
To prevent incorrect printing, this printer has a function that detects whether the settings for the paper loaded in the cassette matches the paper settings. Before printing, make print settings in accordance with the paper settings. When this function is enabled, an error message is displayed if these settings do not match to prevent incorrect printing. When this error message is displayed, check and correct the paper settings.
