Easy Wireless Connect Setup - TS3700 series

« Go Back

Information


TitleEasy Wireless Connect Setup - TS3700 series
URL NameART184732
Description

This article shows how to set up the PIXMA TS3700 series for use on a wireless network using the Easy Wireless Connect process.

Solution

Easy Wireless Connect

  1. Press and hold the Wireless connect button (A) on the printer, and then release the button when  Direct icon(B) flashes.

    figure: Press and hold the Wireless connect button and the Direct icon flashes

  2. Make sure  Network status icon and the horizontal bars (C) flash as shown in the illustration below.

    figure: Network status icon and the lower two horizontal bars flash

When the printer is in Easy Wireless Connect mode, proceed with the setup based on the computer or mobile device you are using.

Windows

Download and run the setup file.*

Get the Setup File

After downloading the setup file, open it. If you're prompted to provide permission to open the file, select Open or the appropriate affirmative option.

  1. Select your language, then click OK.

    Select your language, then click OK (outlined in red)

  2. Select your place of residence, then click OK.

    Select your place of residence, then click OK (outlined in red)

  3. Select Start Setup.

    Click Start Setup (outlined in red)

    The installer will check for the latest information related to your printer.

    Checking the latest information

  4. Read the license agreement. Select Yes to proceed.  If you select No, the installation will not proceed.

    Click Yes (outlined in red) to proceed

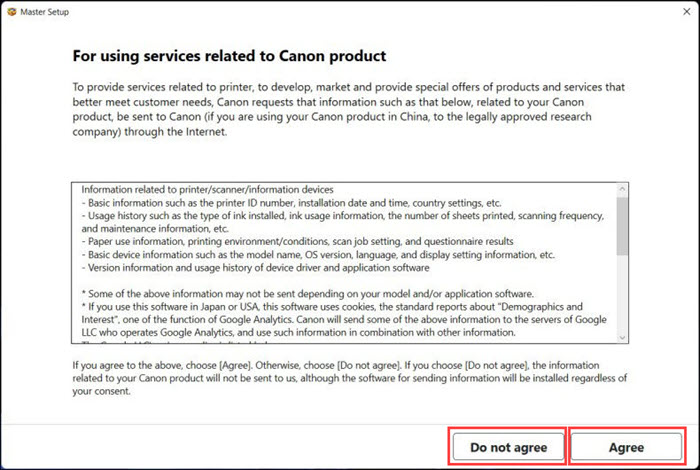

  5. Select Agree or Do Not Agree to the information request.

    Click Agree or Do not agree (both outlined in red) to proceed

    This message appears if you selected Do not agree. Click OK to proceed.

    Click OK (outlined in red) to proceed

  6. After processing for a few moments, the installer will display the following message. Select Next.

    Click Next (outlined in red) to proceed

    The installer will search for the printer.

    Searching for printers

  7. The installer will ask you to confirm that you want to connect the printer to your wireless router. Select Connect.

    Click Connect (outlined in red)

  8. The computer will communicate with the printer. Please wait.

    Please wait

    After a few moments, the connection will be completed.

    The printer is now connected to the network

     If your printer is not detected, make sure that the computer has reconnected to the correct network. Also, you may need to temporarily disable any firewall software, or you may need to open blocked ports in the firewall. If your PC is connected to a VPN (Virtual Private Network), temporarily disconnect from the VPN and try the setup again.

  9. The installer will download the software and drivers.

    Click Add Printer (outlined in red)

    The MP Drivers will be installed. Please wait.

    Installing the MP Drivers

  10. The printer will be registered into your computer. Please wait.

    Please wait

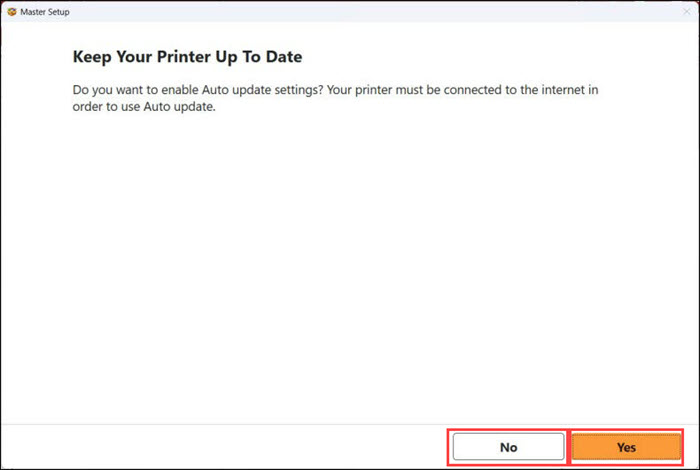

  11. You will be prompted to keep the printer's firmware up to date. Select Yes or No. If you select Yes, the printer must be connected to a wireless network with internet access.

    Select Yes or No (outlined in red)

  12. The following screen will appear. Select Next.

     If desired, select Test Print to print a test page.

    Click Next (outlined in red) to proceed

  13. Select Go to Website. The installer will close.

    Click Go to Website (outlined in red) to close the installer



macOS

Download and run Canon Inkjet Smart Connect.

Get Canon Inkjet Smart Connect here

After downloading the file, drag the the Canon Inkjet Smart Connect icon to the Applications folder.

Master Setup icon

Open the Applications folder on your computer, then open Canon Inkjet Smart Connect.

When you first open Canon Inkjet Smart Connect, select Do not agree or Agree to continue.

Select Do not agree or Agree

When this screen appears, select Set Up Now.

Click Set Up Now (outlined in red)

Enter your user name and password in the fields provided then select Install Helper.

Select Install Helper (outlined in red)

  1. Select Start Setup on the first screen.

    Click Start Setup (outlined in red)

    The installer will check for the latest information related to your printer.

    Checking the latest information

  2. Select Agree or Do Not Agree to the information request.

    Click Agree or Do not agree (both outlined in red) to proceed

    This message appears if you selected Do not agree. Click OK to proceed.

    Click OK (outlined in red) to proceed

  3. After processing for a few moments, the installer will display the following message. Select Next.

    Click Yes (outlined in red) to proceed

     You may see the message below. If you see this, select Allow.

    Select Allow (outlined in red)

    The installer will search for the printer.

    Searching for printers

  4. Your printer and the last five characters of its serial number will be shown. Select Connect.

    Click Connect (outlined in red)

    You may see the following message. If so, click OK.

    Click OK (outlined in red)

  5. If prompted, enter your user name and password for your computer, then select Allow.

    Click Allow (outlined in red)

    After a few moments, the printer will be connected to the network.

    The printer is connected

    The installer will download software, then process for a few moments.

  6. When the Add Printer screen appears, select Add Printer.

    Click Add Printer (outlined in red)

  7. Select your printer from the list. Make sure it says Canon XXXX Series for Use, then click Add.

    Make sure your printer series is shown for Use, then click Add (outlined in red)

  8. Select Next.

    Click Next (outlined in red)

  9. When the following screen appears, select Next.

     If desired, select Test Print to print a test page.

    Click Next (outlined in red) to proceed

  10. Select Go to Website. The installer will close.

    Click Go to Website (outlined in red) to close the installer



Android

You can use the Canon PRINT app to easily set up a wireless connection so you can print from an Android™ device.

Follow the steps below.

  1. Start the Canon PRINT app. If you don't have the app, download it from Google Play.
  2. Upon opening the app for the first time, you'll see a License Agreement. Read the terms and tap Agree to continue. If you tap Do not agree, you won't be able to use this app.

    Tap Agree (ouitlined in red) after reading the License Agreement to continue

  3. The For using services related to Canon product screen will appear. Read this information, then tap Agree or Do not agree.

    Tap Agree or Do not agree to continue

  4. The following screen will appear. Tap OK to proceed.

    Tap OK (outlined in red) to continue

  5. When asked to allow the app to access your device's location, tap While using the app or the appropriate affirmative option.

    Tap Allow (outlined in red) or the appropriate affirmative option

    When asked to allow the app to access your device's photos and media, tap Allow or the appropriate affirmative option.

    Tap Allow (outlined in red) or the appropriate affirmative option

  6. When the screen below appears, tap Search.

    Tap Search (outlined in red)

     If you see this message, do not tap Yes or No. Tapping Yes will start the process over. Tapping No will cause the app to indicate that it is still searching for a printer.

    Do not tap Yes or No on this screen

  7. Tap Next when this message appears.

    Tap Next (outlined in red)

  8. You'll be prompted to connect directly to the printer. Tap Connect or the appropriate affirmative option.

    Tap Connect (outlined in red)

    Note Depending on the model, it may be named Canon_ij_setup or it may have the name of the printer, such as Canon_ij_xxxxx_GX7000series.

     If you tap Cancel, you'll be prompted to manually connect to the printer. If you see this screen, tap Open Wi-Fi Settings, then select the printer's network name and return to the app.

  9. A message appears saying the printer will connect to your wireless network.  Make sure your network name appears in this message, then tap Yes.

    Note If your printer is too far away from your router, your Android device may try and fail to connect and you won't see the screen shown below. In this case, turn off the printer, move it closer to your router, and restart the process.

    Confirmation message: The printer will be connected to the following wireless router.. Select Yes to continue.

  10. Enter the password for your wireless router. Tap the eye symbol to check the password entry to be sure it's correct, then tap OK.

    Note If the process fails at this stage, you may need to restart the process and connect your Android device to the Canon_ij_XXXX SSID. Set your printer to Easy Wireless Connect mode, connect to the Canon_ij_XXXX SSID, and start again from step 1.

    Enter password screen. Tap OK when network password has been entered.

    The app will send your network information to the printer. Please wait.

    Communicating with the printer

     At this point, your device will communicate with the printer, which will be automatically added. However, in some instances, you may need to manually add the printer. Proceed to the next step if the Register Printer screen appears.

  11. If the Register Printer screen appears, wait for your printer to appear on the screen, then tap it.

    Tap on your printer in the list

    The app will acquire information on your printer.

    Acquiring printer information

  12. Tap Close.

    Tap Close (outlined in red)

  13. Wireless connection is complete. Tap Select images to start using the application or tap the to exit.
    Print a photo / Print a document

    Tap Select images or the X

    Tap Continue or the X

     You may see a prompt similar to the following.

    Prompt for saving SSID information

    If you want this app to save your network name and password to make it easier to reconnect this printer, or to add a new one, make sure the Save box is checked, then tap OK.

How to Rename the Printer (Optional)

  1. On the main screen, tap the Add/Switch icon.

    Tap the Add/Switch icon (outlined in red)

  2. Tap and hold the printer you want to rename. An on-screen keyboard will appear. Enter a new name for the printer, then tap OK.

    Tap and hold the printer you want to rename. Enter a new name for the printer, then tap OK (outlined in red)

  3. Tap the Home icon at the bottom of the screen. The printer will show the new name you entered.

    The printer displays the new name.



iOS / iPadOS

Canon PRINT is a free application that allows iPad®, iPhone® or iPod® touch users to enjoy a variety of PIXMA, MAXIFY and SELPHY print capabilities.

This app allows you to set up a wireless capable printer on the network via Easy Wireless Connect. To use this setup, follow the steps below.

  1. Go to the Apple Store® to download Canon PRINT.
  2. Open the Canon PRINT app.
  3. When you first open the app, a message titled For using services related to Canon product appears. Read the information and tap Agree or Do not agree. You will be able to use the app regardless of which option you select.
  4. If asked whether you want to allow this app to access your location, tap Allow While Using App.
  5. When this message appears, tap Allow.

    Tap OK (outlined in red)

  6. Tap Search.

    Search outlined in red

    The phone will begin searching for printers.

    Searching...

  7. Tap OK.

    Tap OK (outlined in red)

  8. When the following message appears, tap No, or wait for a few moments.

    Tap No (outlined in red)

  9. You'll be asked to join the printer's Wi-Fi connection. When prompted, tap Join.

     This message may appear on top of the message shown in step 9. You may not need to tap No in step 9 before this message appears.

    Tap Join (outlined in red)

     If you have used this app to set up another printer on your network, you may see a prompt similar to this one:

    Prompt asking to connect to network saved in the app

    To connect to the network saved in Canon PRINT, tap Yes and proceed to step 12. To specify the network to connect to, tap No and proceed to the next step.

  10. A list of networks appears. Tap on the name of your network.

     If your printer is too far away from your router, your device may attempt to establish a direct connection with the printer. If this happens, turn off the printer and move it closer to your router. Then, restart this process from step 3.

  11. If your network has a password on it, enter that password then tap OK. You can tap the Show password box to display the password as or after you type it in.

  12. The password for your wireless network is sent to the printer.

    The password has been sent to the printer

  13. Tap Close when this message appears.

    Tap Close (outlined in red)

  14. Tap Select images to choose a picture to print.

    Tap Select images (outlined in red)

     If you don't want to print, tap the X at the upper right.

     After finishing the wireless setup, you may see a prompt similar to the following. If you want to save the network information in Canon PRINT to make it easy to reconnect this printer in the future, or to add a new printer, make sure the Save box is checked, then tap OK.

    Prompt for saving network information in the app

     If this is your first time using the app, you will be asked to allow PRINT to use your location. Tap Allow While Using App.

    Allow While Using App outlined in red

  15. If this is your first time to print from the app, you may be prompted to allow access to your photos. Tap OK.

  16. You'll have the option to print images stored on your device, import images from Canon Camera Connect, or images stored on cloud services. In this example, images stored on the device will be used. Tap Smartphone.

    Tap Smartphone (outlined in red)

  17. The images stored on your device are shown. You can select up to 20 images. Tap on the image(s) you want to print, then tap Add.

    You can select images stored in specific albums on your device by tapping Albums, then selecting the album and images.

    Select the image(s) you want to print, then tap Add (outlined in red)

     You can tap Show Selected to view the image(s) you selected for printing. You can swipe through the image(s), and if you don't want to print an image, you can either tap the check mark on the image, or tap Deselect All. Tap Done when finished.

    Tap the check mark (outlined in red) or Deselect All (outlined in red) if you want to deselect one or more images. Tap Done when you are finished

  18. You'll return to the Photo Locations screen. Tap Next.

    Tap Next (outlined in red)

    If you see a message similar to this, tap No.

    Tap No (outlined in red)

  19. Tap Print settings to change any of the settings listed on the screen (number of copies, paper size, etc.), then tap Print.


    Tap Print Settings (outlined in blue) or Print (outlined in red)


Change the printer name

If you already registered your printer with Canon PRINT and would like to change its name, follow the steps below.

  1. From the main screen of Canon PRINT app, tap the Add/Switch icon at the bottom.

    Tap the Register Printer icon (outlined in red)

  2. Tap and hold the name of the registered printer in the list.

    Tap and hold the name of the printer you want to rename (outlined in red)

  3. When prompted, enter a name you would like to use for the printer, then tap OK.

    Enter the new name for your printer, then tap OK (outlined in red)

  4. After you tap OK, tap Back at the upper left corner.

    Tap Home (outlined in red)

  5. The printer appears in Canon PRINT with the name you specified.

    The printer appears with the name you specified



ChromeOS

You can use the Canon PRINT app to easily set up a wireless connection so you can print from a ChromeOS device.

  1. If you have not already done so, start Easy Wireless Connect on your printer.

  2. Start the Canon PRINT app. If you don't have the app, download it from Google Play.

  3. Upon opening the app for the first time, you'll see a License Agreement. Read the terms and tap or click Agree to continue. If you tap or click Do not agree, you won't be able to use this app.

    Tap or click Agree (ouitlined in red) after reading the License Agreement to continue

  4. The For using services related to Canon product screen will appear. Read this information, then tap or click or click Agree or Do not agree.

    Tap or click Agree or Do not agree to continue

  5. The following screen will appear. Tap or click OK to proceed.

    Tap or click OK (outlined in red) to continue

  6. When asked to allow the app to access your device's location, tap or click While using the app or the appropriate affirmative option.

    Tap or click While using the app (outlined in red) or the appropriate affirmative option

    When asked to allow the app to access your find, connect to, and determine the relative position of nearby devices, tap or click Allow or the appropriate affirmative option.

    Tap or click Allow (outlined in red) or the appropriate affirmative option

  7. When this message appears, tap or click Next.

    Tap or click Next (outlined in red)

  8. Tap or click Allow or Don't allow.

    Tap or click Allow or Don't allow (outlined in red)

  9. When the screen below appears, tap or click Search.

    Tap or click Search (outlined in red)

     If you see this message, do not tap or click Yes or No. Tapping or clicking Yes will start the process over. Tapping or clicking No will cause the app to indicate that it is still searching for a printer.

    Do not tap or click Yes or No on this screen

  10. Tap or click Next when this message appears.

    Tap or click Next (outlined in red)

  11. You'll be prompted to connect directly to the printer. Tap or click Connect or the appropriate affirmative option.

    Tap or click Connect (outlined in red)

    Note Depending on the model, it may be named Canon_ij_setup or it may have the name of the printer, such as Canon_ij_xxxxx_GX7000series.

     If you tap or click Cancel, you'll be prompted to manually connect to the printer. If you see this screen, tap or click Open Wi-Fi Settings, then select the printer's network name and return to the app.

  12. A message appears saying the printer will connect to your wireless network.  Make sure your network name appears in this message, then tap or click Yes.

    Note If your printer is too far away from your router, your ChromeOS device may try and fail to connect and you won't see the screen shown below. In this case, turn off the printer, move it closer to your router, and restart the process.

    Confirmation message: The printer will be connected to the following wireless router. Select Yes to continue.

  13. Enter the password for your wireless router. Tap or click the eye symbol to check the password entry to be sure it's correct, then tap or click OK.

    Note If the process fails at this stage, you may need to restart the process and connect your ChromeOS device to the Canon_ij_XXXX SSID.

    Enter password screen. Tap or click OK when the network password has been entered.

    The app will send your network information to the printer. Please wait.

    Communicating with the printer

     At this point, your device will communicate with the printer, which will be automatically added.

  14. Wireless connection is complete. Tap or click Select images to start using the application or tap the X to exit.

    Tap or click Select images or the X

    Tap or click Continue or the X

     You may see a prompt similar to the following.

    Prompt for saving SSID information

    If you want this app to save your network name and password to make it easier to reconnect this printer, or to add a new one, make sure the Save box is checked, then tap or click OK.



How to Rename the Printer (Optional)

  1. On the main screen, tap or click the Add/Switch icon.

    Tap or click the Add/Switch icon (outlined in red)

  2. Tap or click and hold the printer you want to rename. An on-screen keyboard will appear. Enter a new name for the printer, then tap or click OK.

    Tap and hold the printer you want to rename. Enter a new name for the printer, then tap OK (outlined in red)

  3. Tap or click the Home icon at the bottom of the screen. The printer will show the new name you entered.

    The printer displays the new name.



If your product issue was not resolved after following the steps above, or if you require additional help, please create or log in to your Canon Account to see your technical support options.


Powered by
