PIXMA PRO-200S Connect Additional Networked Computers (Wi-Fi) - Windows

Printable View
« Go Back

Information


TitlePIXMA PRO-200S Connect Additional Networked Computers (Wi-Fi) - Windows
URL NamePIXMA-PRO-200S-Connect-Additional-Networked-Computers-Wi-Fi-Windows
Description

This article shows how to set up your Windows PC to connect to the PIXMA PRO-200S that is already connected wirelessly to your network.

Solution

Wireless Setup - Windows

To be able to use your printer wirelessly on a Windows PC, the printer must first be connected to the wireless network. Then, software needs to be installed on the computer. The instructions / screenshots below show the setup program steps when the printer is already connected to the wireless network.


Download and run the setup file.

Get the Setup File

After downloading the setup file, open it. If you're prompted to provide permission to open the file, select Open or the appropriate affirmative option.

  1. Select your language, then click OK.

    Select your language, then click OK (outlined in red)

  2. Select your place of residence, then click OK.

    Select your place of residence, then click OK (outlined in red)

  3. Select Start Setup.

    Click Start Setup (outlined in red)

    The installer will check for the latest information related to your printer.

    Checking the latest information

  4. In order to proceed, you must agree to the License Agreement. Click License Agreement to read it, then place a check in the box next to Agree. You may also choose to agree to requests for information from Canon by placing a check in the appropriate boxes. Click Next to proceed.

    Click Next (outlined in red) to proceed

  5. After processing for a few moments, the installer will display the following message. Select Next.

    Click Next (outlined in red) to proceed

    The installer will search for the printer.

    Searching for printers

  6. Select your printer in the list, then click Next.

    Select the printer in the list, then click Next

     If your printer is not detected, make sure that the computer is connected to the correct network. Also, you may need to temporarily disable any firewall software, or you may need to open blocked ports in the firewall. If your PC is connected to a VPN (Virtual Private Network), temporarily disconnect from the VPN and try the setup again.

  7. Select Continue to proceed.

    Click Continue (outlined in red) to proceed

  8. The computer will communicate with the printer. After a few moments, the connection will be completed.

    The connection has been made

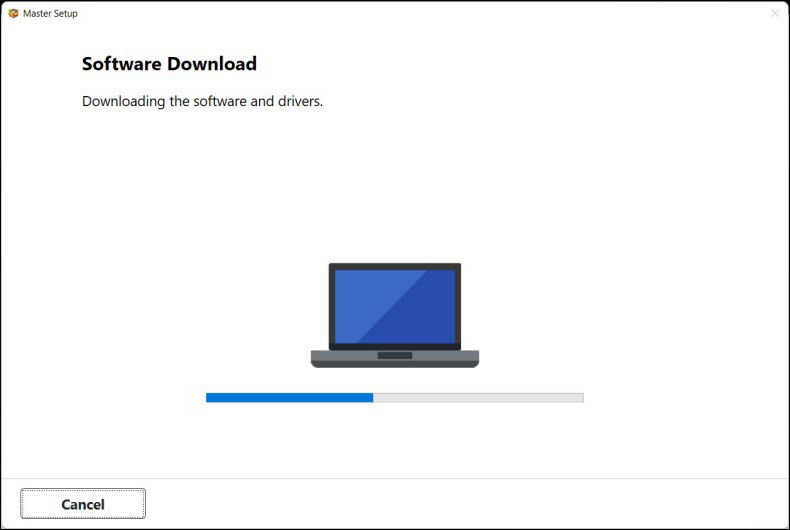

  9. The installer will download the software and drivers.

    Click Add Printer (outlined in red)

    The printer driver will be installed. Please wait.

    Installing the printer driver

  10. The printer will be registered into your computer. Please wait.

    Please wait

  11. After processing for a few moments, the following screen will appear. Select Next.

    Click Next (outlined in red) to proceed

  12. Select Go to Website. The installer will close.

    Click Go to Website (outlined in red) to close the installer

If your product issue was not resolved after following the steps above, or if you require additional help, please create or log in to your Canon Account to see your technical support options.
