Printing the TR8520 LAN Details

Printable View
« Go Back

Information


TitlePrinting the TR8520 LAN Details
URL NameART168044
Description
Network Settings

An example of this information is attached to this article.


Solution

Printing Network Settings

Note: The steps listed below are specific to the TR8520.  For instructions for other models, click here

Use the operation panel to print the printer's current network settings.

Important

  • The network settings printout contains important information about your network. Handle it with care.

  1. Make sure printer is turned on.

  2. Load three sheets of A4 or Letter-sized plain paper.

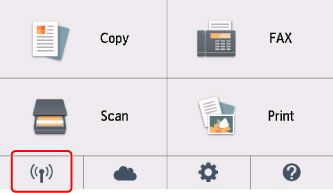

  3. Select "Network status" on the touch screen.

    figure: Touch screen

  4. Check message and select Yes.

  5. Select Print details.

  6. Select Yes.

    The printer starts printing the network setting information.

    The following information on the printer's network setting is printed out. (Some setting values are not displayed depending on the printer settings.)

    Item Number

    Item

    Description

    Setting

    1

    Product Information

    Product information

    –

    1-1

    Product Name

    Product name

    XXXXXXXX

    1-2

    ROM Version

    ROM version

    XXXXXXXX

    1-3

    Serial Number

    Serial number

    XXXXXXXX

    2

    Network Diagnostics

    Network diagnostics

    2-1

    Diagnostic Result

    Diagnostic result

    XXXXXXXX

    2-2

    Result Codes

    Result codes

    XXXXXXXX

    2-3

    Result Code Details

    Result code details

    http://canon.com/ijnwt

    3

    Wireless LAN

    Wireless LAN

    Enable/Disable

    3-2

    Infrastructure

    Infrastructure

    Enable/Disable

    3-2-1

    Signal Strength

    Signal strength

    0 to 100 [%]

    3-2-2

    Link Quality

    Link quality

    0 to 100 [%]

    3-2-3

    Frequency

    Frequency

    XX (GHz)

    3-2-4

    MAC Address

    MAC address

    XX:XX:XX:XX:XX:XX

    3-2-5

    Connection

    Connection status

    Active/Inactive

    3-2-6

    SSID

    SSID

    Wireless LAN SSID

    3-2-7

    Channel

    Channel

    XX (1 to 13)

    3-2-8

    Encryption

    Encryption method

    None/WEP/TKIP/AES

    3-2-9

    WEP Key Length

    WEP key length (bits)

    Inactive/128/64

    3-2-10

    Authentication

    Authentication method

    None/auto/open/shared/WPA-PSK/WPA2-PSK

    3-2-11

    TCP/IPv4

    TCP/IPv4

    Enable

    3-2-12

    IP Address

    IP address

    XXX.XXX.XXX.XXX

    3-2-13

    Subnet Mask

    Subnet mask

    XXX.XXX.XXX.XXX

    3-2-14

    Default Gateway

    Default gateway

    XXX.XXX.XXX.XXX

    3-2-15

    TCP/IPv6

    TCP/IPv6

    Enable/Disable

    3-2-16

    Link Local Address

    Link local address

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-17

    Link Local Prefix Length

    Link local prefix length

    XXX

    3-2-18

    Stateless Address1

    Stateless address 1

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-19

    Stateless Prefix Length1

    Stateless prefix length 1

    XXX

    3-2-20

    Stateless Address2

    Stateless address 2

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-21

    Stateless Prefix Length2

    Stateless prefix length 2

    XXX

    3-2-22

    Stateless Address3

    Stateless address 3

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-23

    Stateless Prefix Length3

    Stateless prefix length 3

    XXX

    3-2-24

    Stateless Address4

    Stateless address 4

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-25

    Stateless Prefix Length4

    Stateless prefix length 4

    XXX

    3-2-26

    Default Gateway1

    Default gateway 1

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-27

    Default Gateway2

    Default gateway 2

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-28

    Default Gateway3

    Default gateway 3

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-29

    Default Gateway4

    Default gateway 4

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-2-33

    IPsec

    IPsec setting

    Active

    3-2-34

    Security Protocol

    Security method

    ESP/ESP & AH/AH

    3-3

    Access Point Mode

    Operation mode for Wireless Direct

    Enable/Disable

    3-3-1

    MAC Address

    MAC address

    XX:XX:XX:XX:XX:XX

    3-3-2

    Connection

    Connection status

    Active/Inactive

    3-3-3

    SSID

    SSID

    Wireless Direct SSID

    3-3-4

    Password

    Password

    Wireless Direct password (10 alphanumeric characters)

    3-3-5

    Channel

    Channel

    3

    3-3-6

    Encryption

    Encryption method

    AES

    3-3-7

    Authentication

    Authentication method

    WPA2-PSK

    3-3-8

    TCP/IPv4

    TCP/IPv4

    Enable

    3-3-9

    IP Address

    IP address

    XXX.XXX.XXX.XXX

    3-3-10

    Subnet Mask

    Subnet mask

    XXX.XXX.XXX.XXX

    3-3-11

    Default Gateway

    Default gateway

    XXX.XXX.XXX.XXX

    3-3-12

    TCP/IPv6

    TCP/IPv6

    Enable/Disable

    3-3-13

    Link Local Address

    Link local address

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    3-3-14

    Link Local Prefix Length

    Link local prefix length

    XXX

    3-3-15

    IPsec

    IPsec setting

    Active

    3-3-16

    Security Protocol

    Security method

    –

    4

    Wired LAN

    Wired LAN

    Enable/Disable

    4-1

    MAC Address

    MAC address

    XX:XX:XX:XX:XX:XX

    4-2

    Connection

    Wired LAN status

    Active/Inactive

    4-3

    TCP/IPv4

    TCP/IPv4

    Enable

    4-4

    IP Address

    IP address

    XXX.XXX.XXX.XXX

    4-5

    Subnet Mask

    Subnet mask

    XXX.XXX.XXX.XXX

    4-6

    Default Gateway

    Default gateway

    XXX.XXX.XXX.XXX

    4-7

    TCP/IPv6

    TCP/IPv6

    Enable/Disable

    4-8

    Link Local Address

    Link local address

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-9

    Link Local Prefix Length

    Link local prefix length

    XXX

    4-10

    Stateless Address1

    Stateless address 1

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-11

    Stateless Prefix Length1

    Stateless prefix length 1

    XXX

    4-12

    Stateless Address2

    Stateless address 2

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-13

    Stateless Prefix Length2

    Stateless prefix length 2

    XXX

    4-14

    Stateless Address3

    Stateless address 3

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-15

    Stateless Prefix Length3

    Stateless prefix length 3

    XXX

    4-16

    Stateless Address4

    Stateless address 4

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-17

    Stateless Prefix Length4

    Stateless prefix length 4

    XXX

    4-18

    Default Gateway1

    Default gateway 1

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-19

    Default Gateway2

    Default gateway 2

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-20

    Default Gateway3

    Default gateway 3

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-21

    Default Gateway4

    Default gateway 4

    XXXX:XXXX:XXXX:XXXX
    XXXX:XXXX:XXXX:XXXX

    4-25

    IPsec

    IPsec setting

    Active

    4-26

    Security Protocol

    Security method

    ESP/ESP & AH/AH

    4-27

    Wired LAN DRX

    Discontinuous reception (wired LAN)

    Enable/Disable

    5

    Other Settings

    Other settings

    –

    5-1

    Printer Name

    Printer name

    Printer name (Up to 15 alphanumeric characters)

    5-4

    WSD Printing

    WSD printing setting

    Enable/Disable

    5-5

    WSD Timeout

    Timeout

    1/5/10/15/20 [min]

    5-6

    LPD Printing

    LPD printing setting

    Enable/Disable

    5-7

    RAW Printing

    RAW printing setting

    Enable/Disable

    5-9

    Bonjour

    Bonjour setting

    Enable/Disable

    5-10

    Bonjour Service Name

    Bonjour service name

    Bonjour service name (Up to 52 alphanumeric characters)

    5-11

    LLMNR

    LLMNR setting

    Enable/Disable

    5-12

    SNMP

    SNMP setting

    Enable/Disable

    5-13

    PictBridge Commun.

    PictBridge Communication

    Enable/Disable

    5-14

    DNS Server

    Obtain DNS server address automatically

    Auto/Manual

    5-15

    Primary Server

    Primary server address

    XXX.XXX.XXX.XXX

    5-16

    Secondary Server

    Secondary server address

    XXX.XXX.XXX.XXX

    5-17

    Proxy Server

    Proxy server setting

    Enable/Disable

    5-18

    Proxy Address

    Proxy address

    XXXXXXXXXXXXXXXXXXXX

    5-19

    Proxy Port

    Proxy port specification

    1 to 65535

    5-20

    Cert. Fingerprt(SHA-1)

    Certificate fingerprint(SHA-1)

    XXXXXXXX XXXXXXXX XXXXXXXX
    XXXXXXXX XXXXXXXX

    5-21

    Cert. Fingerprt(SHA-256)

    Certificate fingerprint(SHA-256)

    XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX
    XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX

    6

    Bluetooth

    Bluetooth settings

    6-1

    Bluetooth Setting

    Bluetooth

    Enable/Disable

    6-2

    Bluetooth PIN Code

    Bluetooth PIN code

    XXXXXXXX

    6-3

    Bluetooth Device Address

    Bluetooth device address of the printer

    XXXXXXXX

    6-4

    Peer Device Address

    Device address of paired device

    XXXXXXXX

    6-5

    Bluetooth Device Name

    Bluetooth device name of the printer

    XXXXXXXX

    7

    Printer Log Service

    Printer log service

    7-1

    Unsent Usage Logs

    Number of unsent usage logs

    0 to 200

    7-2

    Usage Log Last Sent

    Last date when usage log was sent

    XXXXXXXX

    7-3

    Point Service

    Registration status of Ikkyu

    Active/Awaiting Activation/No Active Service

    ("XX" represents alphanumeric characters.)
