Note- This article contains information on the Printer status, Utilities, Device settings and AirPrint settings sections of the Remote UI. Click here for information on the Web service connection setup section. Click here for information on the Security and System info and LAN settings, Firmware update and Language selection sections.
Your PIXMA printer has an HTML interface known as the Remote UI. This interface can be accessed from any device that is connected to the same network as the printer. To access this interface:
- Load plain paper into your printer.
- Print the network information for your printer (also known as a LAN details page).
- From your computer, smartphone, or tablet device, open the Web browser, and enter the following URL:
http://
For <Printer IP address>, enter the IP address that you checked in step 1.
When you enter the IP address, click Log on.
On the next screen, enter the administrator Password.
See "About the Administrator Password" for information on the default Password.
Click OK after entering in the Password.
After entering in the Password, the
Printer Status screen will appear.
Clicking on
Ink number will take you
here. On this page, click on your model. You will then see the numbers for the ink tanks that your printer uses.
Clicking
Order my ink now will also take you
here.
UtilitiesThe
Utilities area allows you to perform maintenance functions on the printer.
Click or tap on the function on the right that you want to execute. When prompted, click or tap
Yes to execute that function.

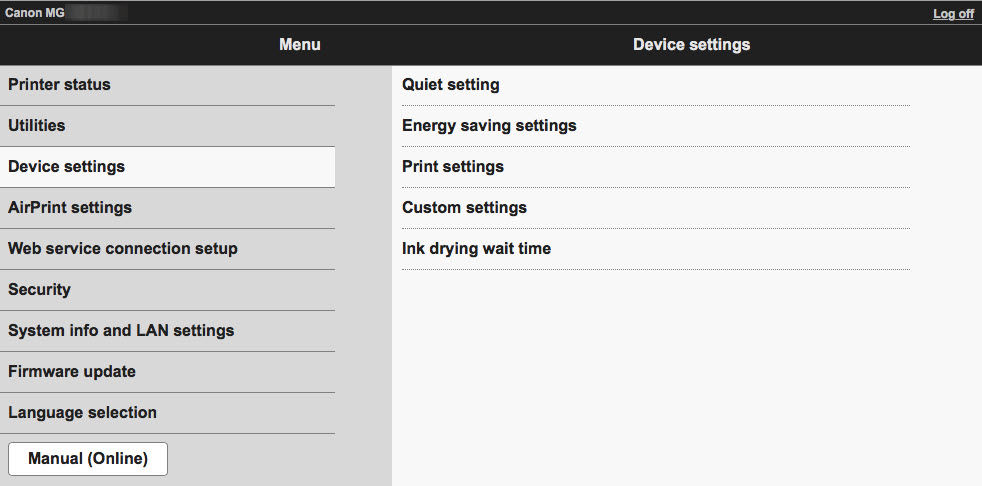

Device settings
In this area, you will be able to toggle the Quiet setting, as well as adjust the Energy saving settings, Print settings, Custom settings and Ink drying wait time.
For the Quiet setting:
Click or tap on
Do not use quiet mode or
Use quiet mode. After the printer has processed the setting, click or tap
OK.
For Print settings:
In this area, you can enable / disable
Prevent paper abrasion.
For
Prevent paper abrasion, place a check in the box to enable it or remove the check to disable it. Then, click or tap
OK.

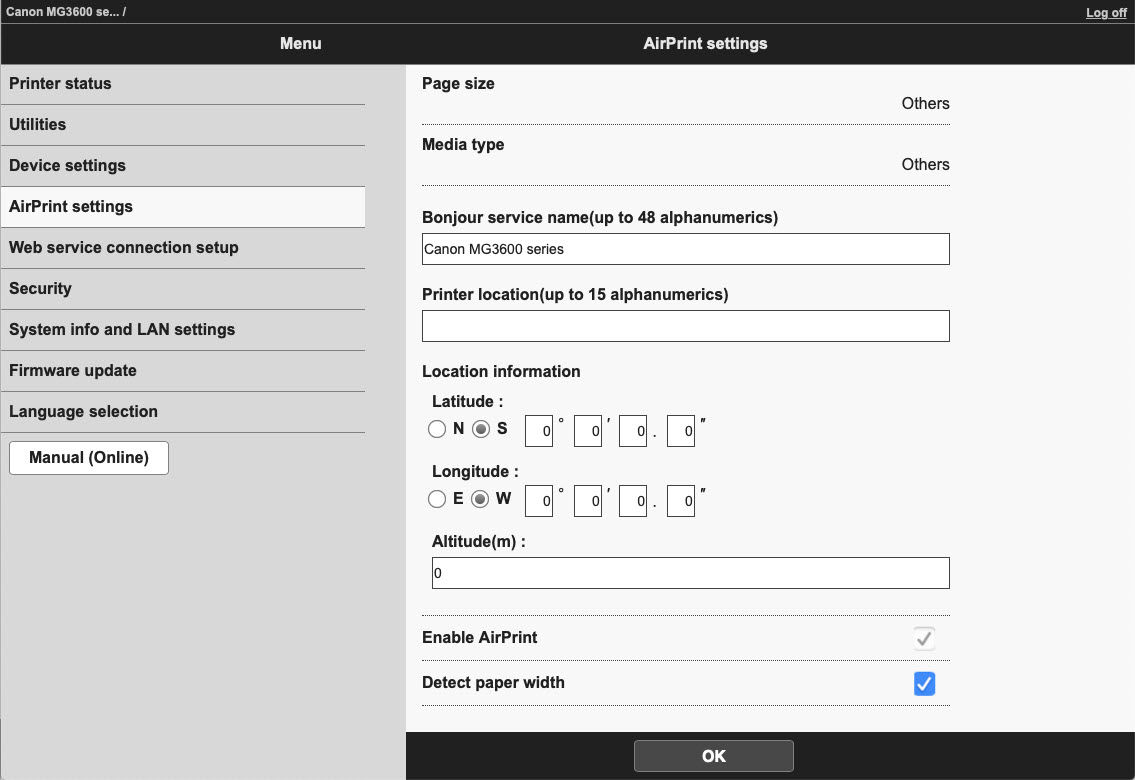

In this area, you can specify the size and type of media you want to use with the printer. You can also change the Bonjour service name, the printer location, and the latitude / longitude and altitude for the printer. You can enable or disable AirPrint, and you can also enable or disable the Detect paper width function of the printer.

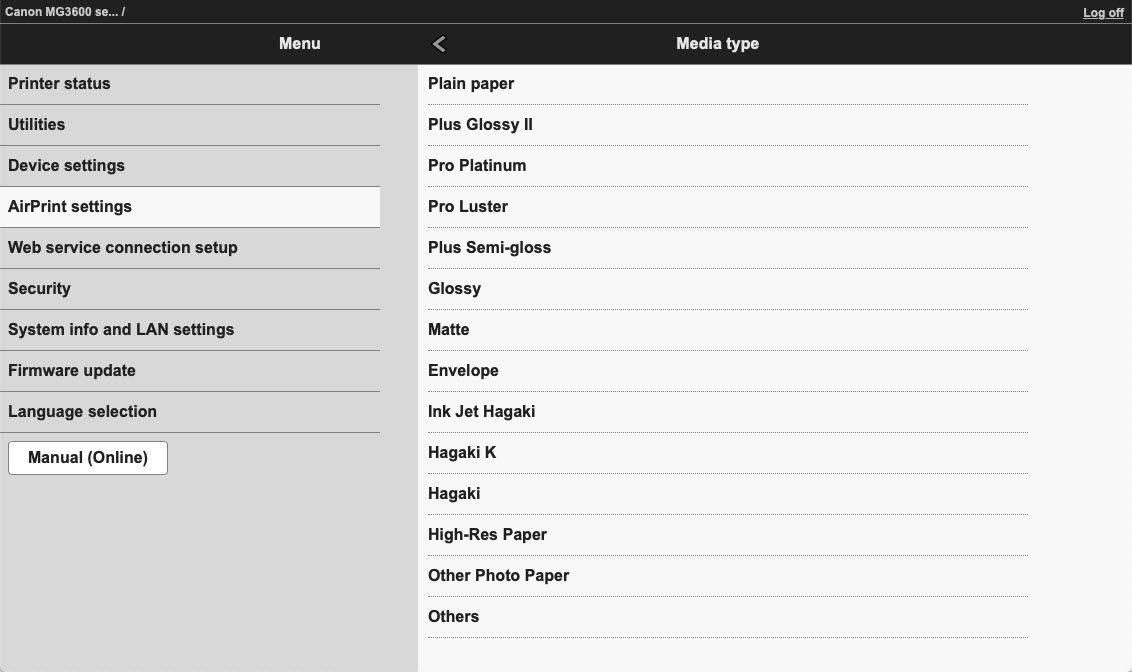

For the
Page size and
Media type:
Click or tap on
Page size or
Media type. Then, specify the size or type of media desired.
Make any changes as desired. Then, click OK.
MG3620 / MG3622 Page
